HSBL DigiPunch 160 Ref.No. 40800 & 40900

With the DigiPunch 160, Novopress offers a new class of busbar punching performance for medium-sized enterprises. Wherever manual punches are insufficient and CNC-controlled machines are to costly, the DigiPunch 160 is the ideal mid-size solution. It reduces manufacturing time and cost significantly, at a very modest investment compared to CNC-punches. The very practical configuration with digital metering in X/Y axis and complete conveyors, enables a very efficient and flexible busbar manufacturing.

All necessary components except power pack and work cylinder are included in delivery. The LCD measuring system works on a permanent battery basis.



Advantage

    • significantly reduced manufacturing cost on medium to medium-large output volume
    • optimized and speedy work flow through integrated conveyor system and work-bench
    • no programming or preparatory work required, very short set-up times
    • fast and stepless positioning of busbars in X and Y axis, with 0.5 mm accuracy
    • switching from absolute- to chain-measurement for fast and easy progressive punching

New progressive punching dies

Also the punching dies are new designed and further reduce manufacturing cost. Punch and die are interchangeable by quick lock mechanism within 20 sec. The solid die-holder enables progressive punching for oblong and slotted wholes. Switching from absolute to chain measurement, offers fast progressive punching without extra calculating. Last but not least we offer a large assortment of punching dies, especially matched with the needs of the electrical industry.

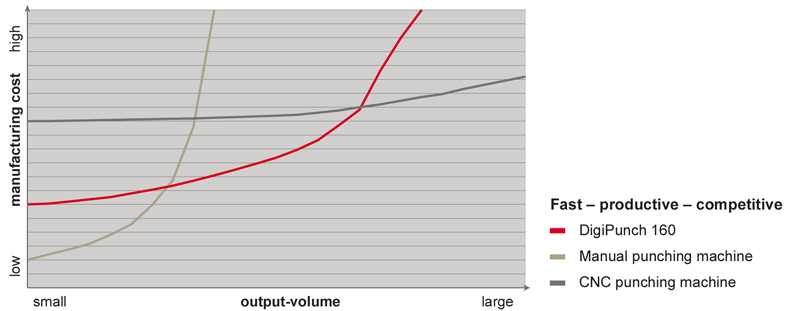

digipunch-160-chart

Technical specifications

Heigth 1900 mm
Depth 550 mm
Width 4300 mm
Weight 160 kg
Operation pressure 150 bar (2,200 psi)
Force 150 KN
Busbar size max. 3000 x 160 x 13 mm
Max. measuring range 2000 x 180 mm
Metering resolution 0.5 mm

Recommended Power Pack is HA3



DigiPunch 160 Ref.No. 40800
DigiPunch 160
incl. Work Cylinder and Power Pack HA3
Ref.No. 40900

Downloads

Operation Manual (ca. 1.1 MB)

Product Flyer (ca. 0,7 MB)
